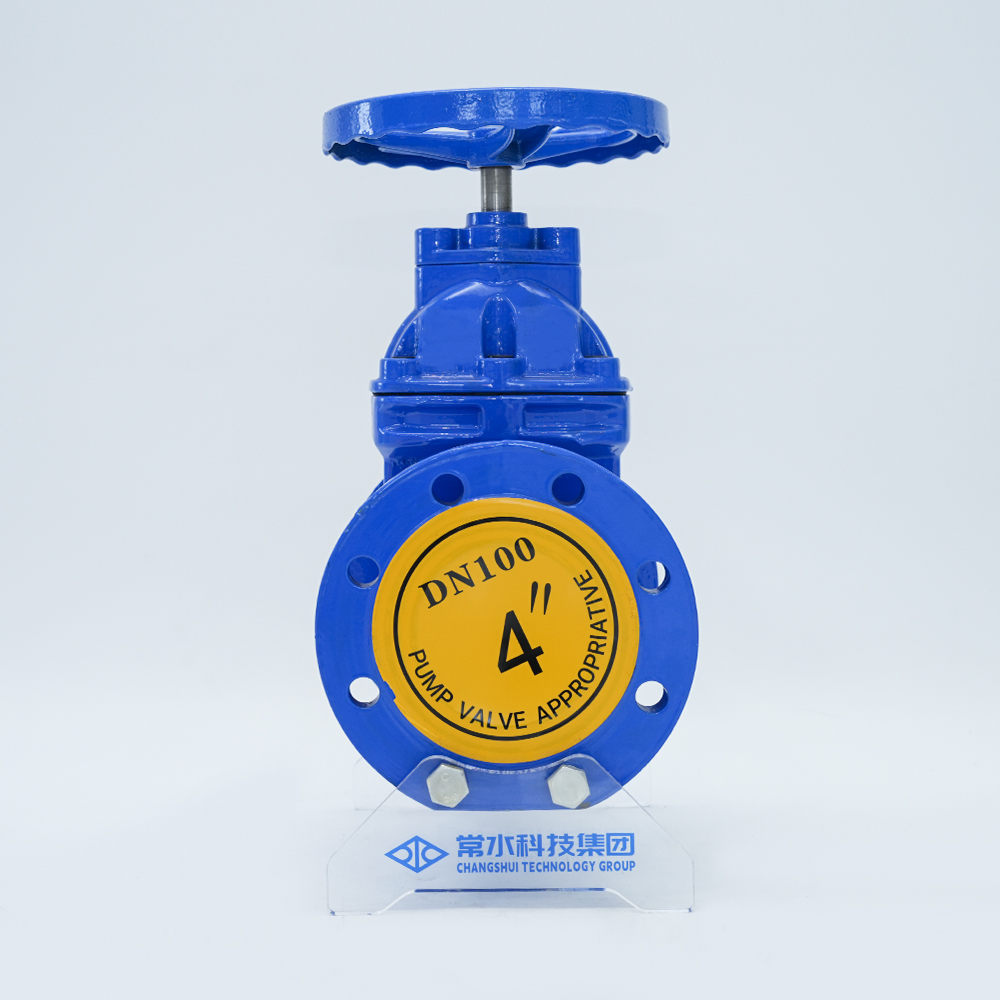

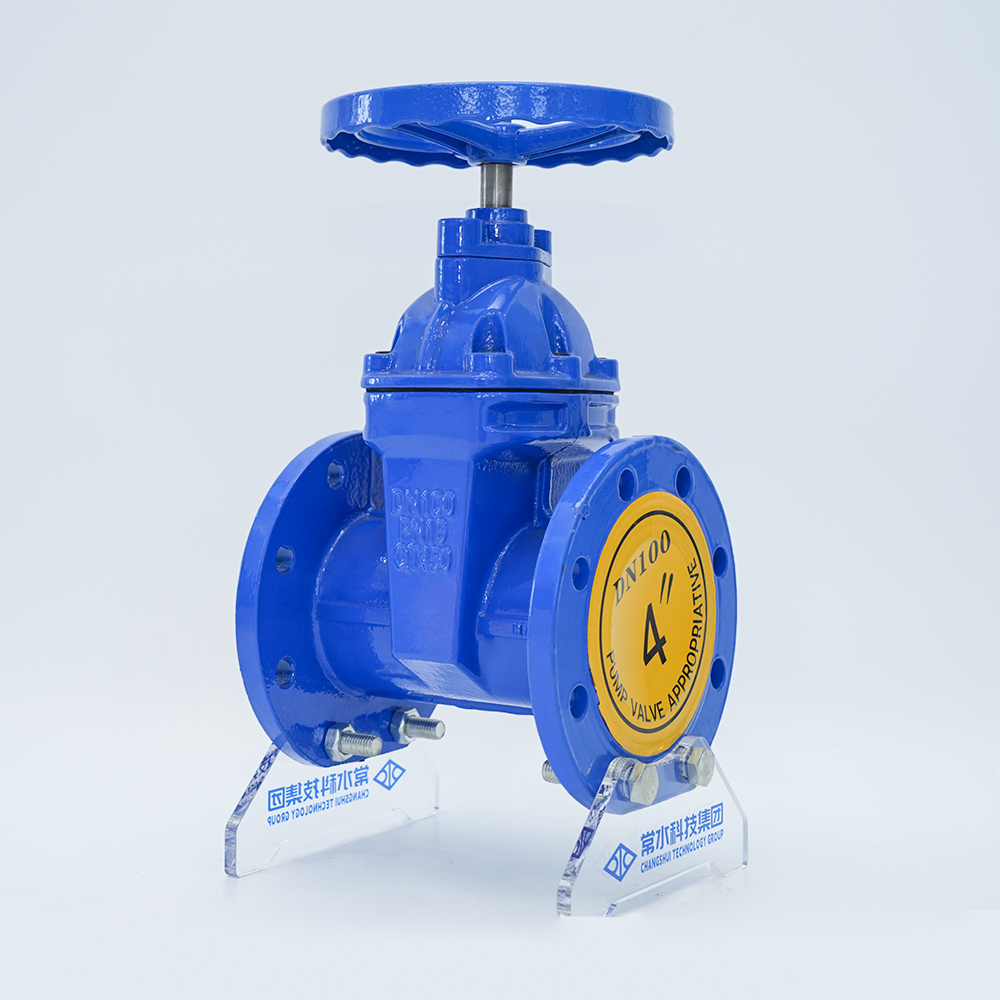

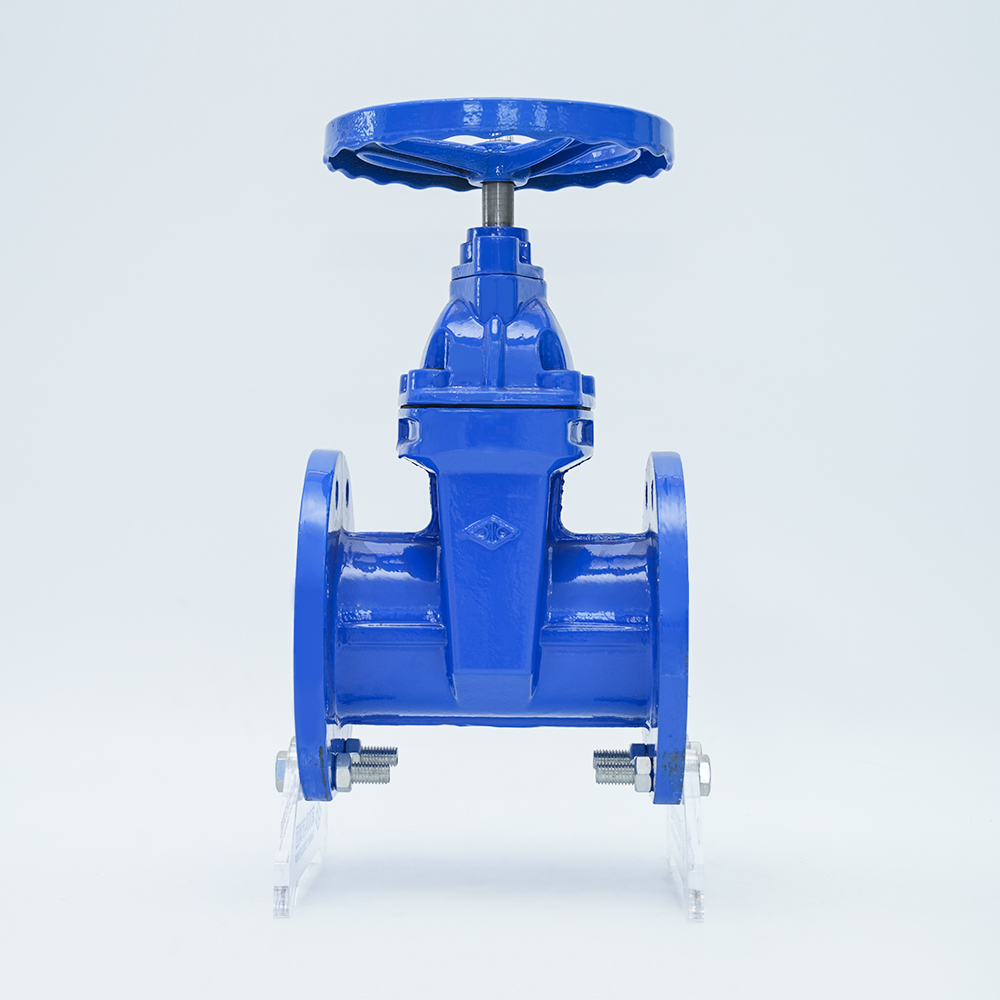

Obscura Caulis Soft Seal Gate Valve Z45X-16Q

Valvulae portae a officina nostra productae utuntur in laminae portae altiore Flexilis tunica ad deformationem emendae ad effectum consequendum bonum signandi, superans phaenomena communium pauperum signandi, lacus, et rubigo valvularum portarum. In variis pipelines instituitur et ut bivium abscise adhibetur. In inceptis pipelineis late adhibetur ut copia aquarum et INCILE, tutela ignis, condicio aeris, curatio aquae, administratio municipalis, aedificatio, electricitas, constructio et cibus ad liquores moderandos.

Contactus us

Corpus materiale	Ferrum nodulare
Exemplar	Z45X-16Q
Specification	DN50-1200
Pressura nominatim	1.0/1.6/2.5Mpa
operating temperatus	0-80°C
Lorem media	aqua
Design signa	GB/24924-2016

Features

Truncus absconditus valvae portae mollis-obsignatae utitur ad laminam portae altiore Flexilis efficiens ad emendam deformationem ad effectum consequendum bonum signandi. Phaenomena pauperis signandi, lacus, et rubiginis valvulae portae generalis vincit et efficacius spatium institutionis servat. Late adhiberi potest ut machinam moderantem et intercipientem in pipelinis fluidis, sicut sonum aquae, purgamentorum, constructionis, petroleum, industria chemica, cibus, medicina, textilia, vis electrica, naves, metallurgia, systemata energiae, etc.

Artes opus est

1. Plectrum designatur et fabricatur secundum signa GB/24924-2010;

2. Valvae longitudo structuralis est secundum normas GB/T12221-205;3. Inspectio et probatio obtemperare debent normis GB/T13927-2008; 4. Mensurae LANGUES normis GB/T17241.6-2008. . parere debent

Euismod Specification

Nomen magnitudine		40/1000				mm
Pressura nominatim		1.0		1.6		Mpa
Test pressura	fortitudo test	aqua	1.5	aqua	2.4
	sigillum test		1.1		1.76
	Air sigillum test		0.6		0.6
Applicatur temperatus		0-80℃
Lorem media		aqua, oleum, etc

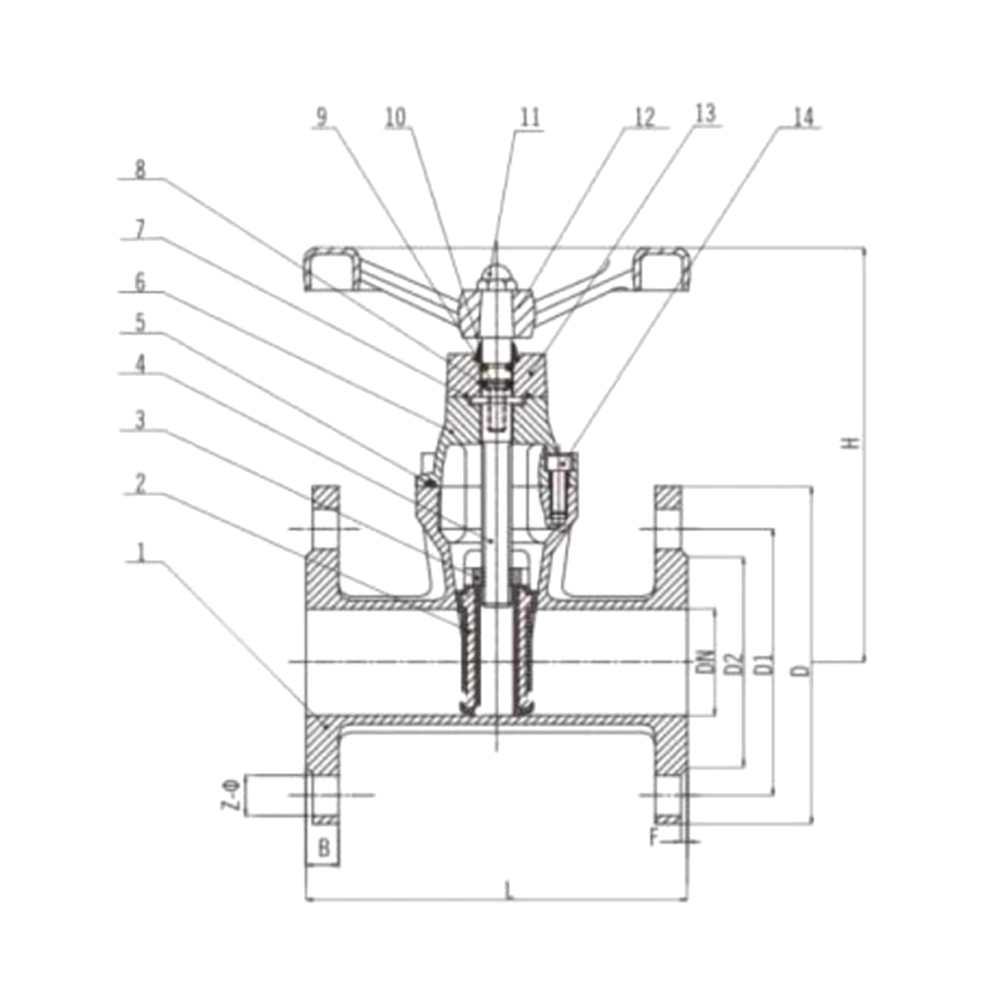

Principalis Materia

Vide Number	Nomen	Material
1	Valvae corpus	QT450
2	Plate valvae	QT450-NBR
3	Caule nut	QT450
4	Stem	20Cr13
5	Medium signacula LABIUM	NBR
6	Bonnet	QT 450
7	O inaures	NBR
8	O inaures	NBR
9	Countersunk fulmina	35#
10	Pulvis iaccam	NBR
11	Hortus caput ANISOCYCLUM	35#
12	Handwheel	QT 405
13	Gland	QT 450
14	Countersunk fulmina	35#

Praecipuae dimensiones externae ac nexus dimensiones (mm)

DN	L	D	D1	D2	C	F	Z-ф	H
40	165	150	110	84	19	3	4-ф19	240
50	178	165	125	99	19	3	4-ф19	240
65	190	185	145	118	19	3	4-ф19	260
80	203	200	160	132	19	3	8-ф19	275
100	229	220	180	156	19	3	8-ф19	380
125	254	250	210	184	19	3	8-ф19	410
150	267	285	240	211	19	3	8-ф23	435
200	292	340	295	266	20	3	8-ф23	630
250	330	395	350	319	22	3	12-ф23	645
300	356	445	400	370	24.5	4	12-ф23	697
350	381	505	460	429	24.5	4	16-ф23	802
400	406	565	515	480	24.5	4	16-ф28	842
450	432	615	565	530	25.5	4	20-ф28	1060
500	457	670	620	583	26.5	4	20-ф28	1170
600	508	780	725	682	30	5	20-ф31	1300
700	610	895	840	794	32.5	5	24-ф31	1550
800	660	1015	950	901	35	5	24-ф34	1750
900	711	1115	1050	1001	37.5	5	28-ф34	1950
1000	811	1230	1160	1112	40	5	28-ф37	2170

Praecipuae dimensiones externae ac nexus dimensiones (mm)

DN	L	D	D1	D2	C	F	Z-ф	H
40	165	150	110	84	19	3	4-ф19	240
50	178	165	125	99	19	3	4-ф19	240
65	190	185	145	118	19	3	4-ф19	260
80	203	200	160	132	19	3	8-ф19	275
100	229	220	180	156	19	3	8-ф19	380
125	254	250	210	184	19	3	8-ф19	410
150	267	285	240	211	19	3	8-ф23	435
200	292	340	295	266	20	3	12-ф23	630
250	330	405	355	319	22	3	12-ф28	645
300	356	460	410	370	24.5	4	12-ф28	697
350	381	520	470	429	26.5	4	16-ф28	802
400	406	580	525	480	28	4	16-ф31	842
450	432	640	585	548	30	4	20-ф31	1060
500	457	715	650	609	31.5	4	20-ф34	1170
600	508	840	770	720	36	5	20-ф37	1300
700	610	910	840	794	39.5	5	24-ф37	1550
800	660	1025	950	901	43	5	24-ф40	1750
900	711	1125	1050	1001	46.5	5	28-ф40	1950
1000	811	1255	1170	1112	50	5	28-ф43	2170
