Changshui Technology Group Co, Ltd.

Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G

Home / Products / Iron Valve ductilis / Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G

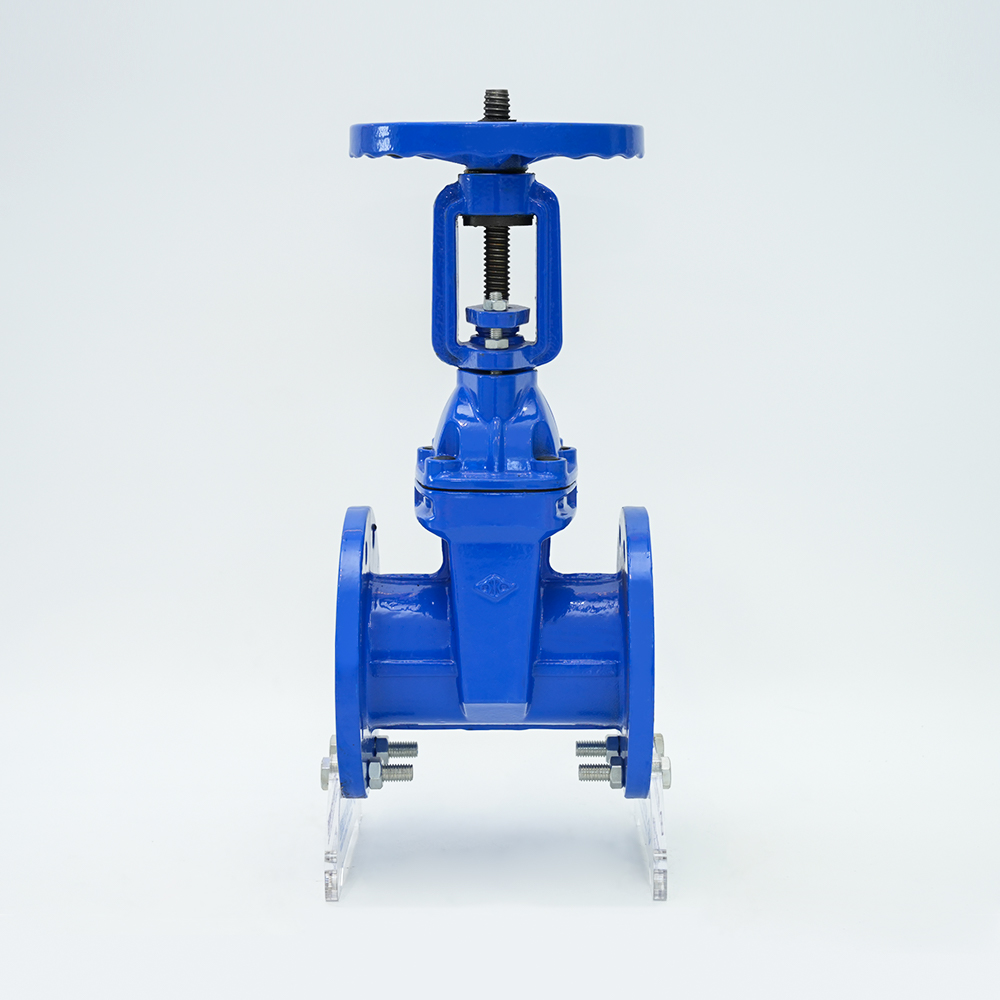

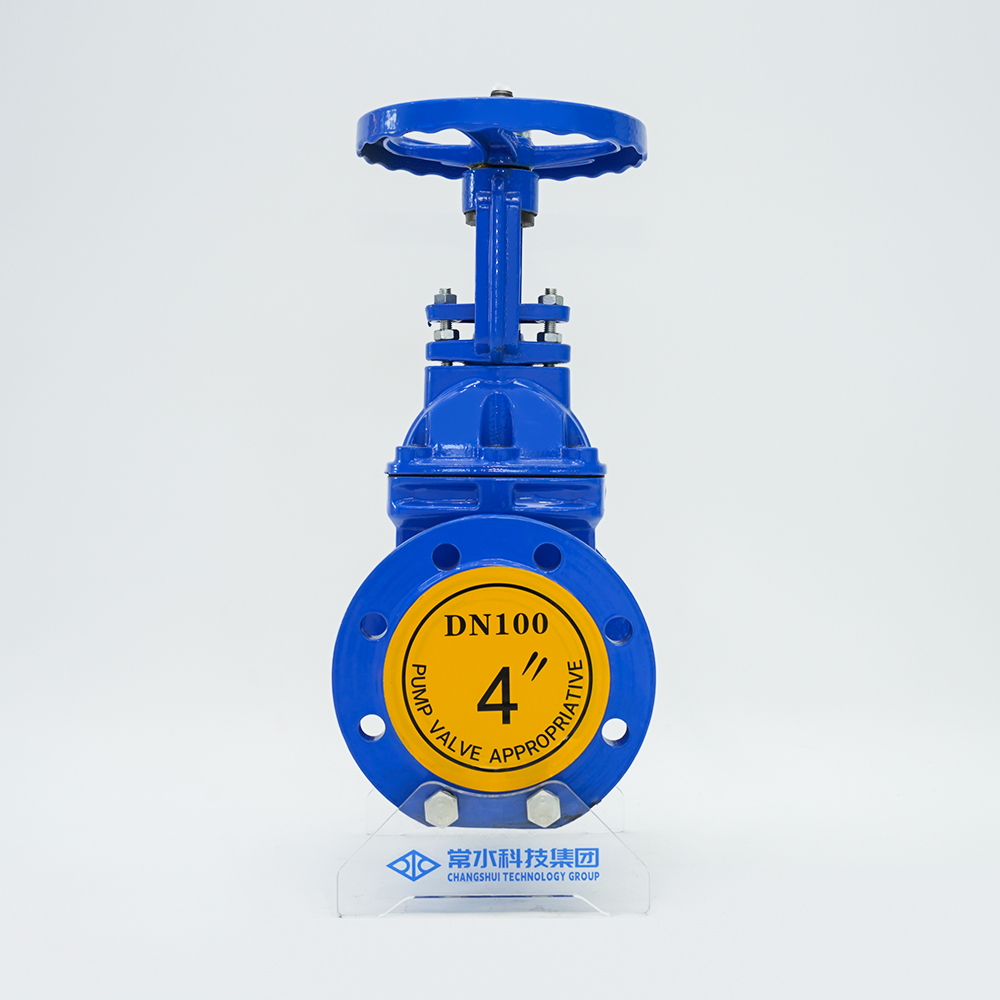

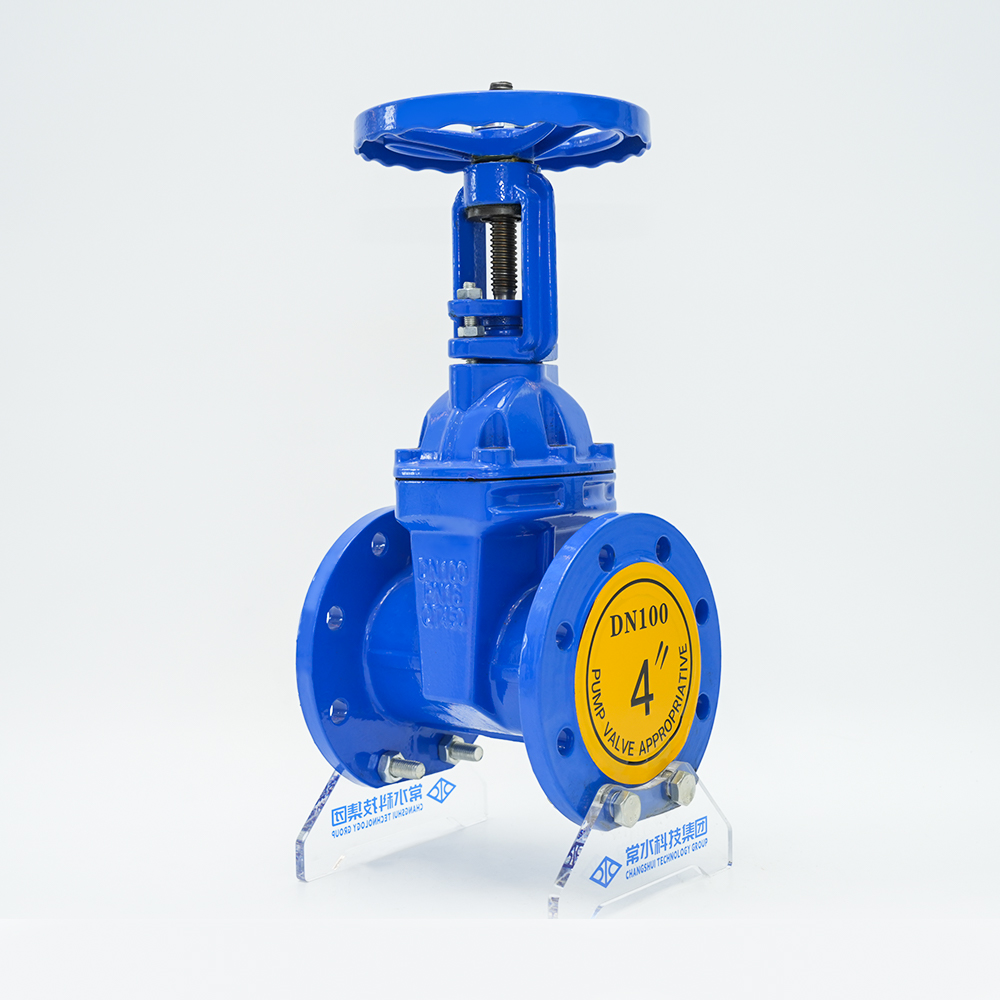

Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G

Valvulae portae a officina nostra productae utuntur in laminae portae altiore Flexilis tunicae ad emendam deformationem ad effectum consequendum bonum signandi, superans phaenomena communis pauperum signandi, lacus et rubigo valvulae portae. In variis pipelines instituitur et ut bivium abscise adhibetur. In inceptis pipelineis late adhibetur ut copia aquarum et INCILE, tutela ignis, condicio aeris, curatio aquae, administratio municipalis, aedificatio, electricitas, constructio et cibus ad liquores moderandos.

  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
  • Porta Valvae Resurgens Caulis Mollis Sigilli Z41X-16G
Contactus us

PREV：Adjustable Pressure Reducing Valvae 200X-16QDEINDE：Flexibile Flexilis Connector Filter KXT-16
Descriptio

Corpus materiale

Ferrum nodulare

Exemplar

Z41X-16Q

Specification

DN40-1000

Pressura nominatim

1.0/1.6/2.5Mpa

operating temperatus

0-80°C

Lorem media

aqua

Design signa

GB/24924-2016


Product Overview

Valvae portae valvae caulis orientia flange structuram caulis valvae externam amplectuntur, et valvae caulis rotatur et axialiter movetur. Porta sursum ac deorsum valvae trunco ​​ad aperiendum et claudendum, et valvae foramen directe observari potest. In inceptis pipelinis late adhibetur ut copia aquarum et INCILE, tutela ignis, condicio aeris, curatio aquae, administratio municipalis, aedificatio, vis electrica, constructio et cibus ut fluidum organum ut fluidum imperium transportandum.

Features

1. Resistentia fluida parva est, et superficies signans minus exesa est et per medium exesa.

2. Aperire et claudendi laborem minorem requirunt.

3. Fluxum directio medii non restringitur, fluxus non turbatur, pressio non reducitur.

4. Simplex figura, brevis structura longitudinis, processus boni fabricandi, et ampliatio late patet.


Product Features

Pressura nominal: 1.0-2.5MPa DN: 50-1200
Temperatus operans: 0-80°C Locum medium: clean / purgamentorum, oleum
Flange vexillum: GB/T17241-98 Longitudo vexillum: GB12221-89

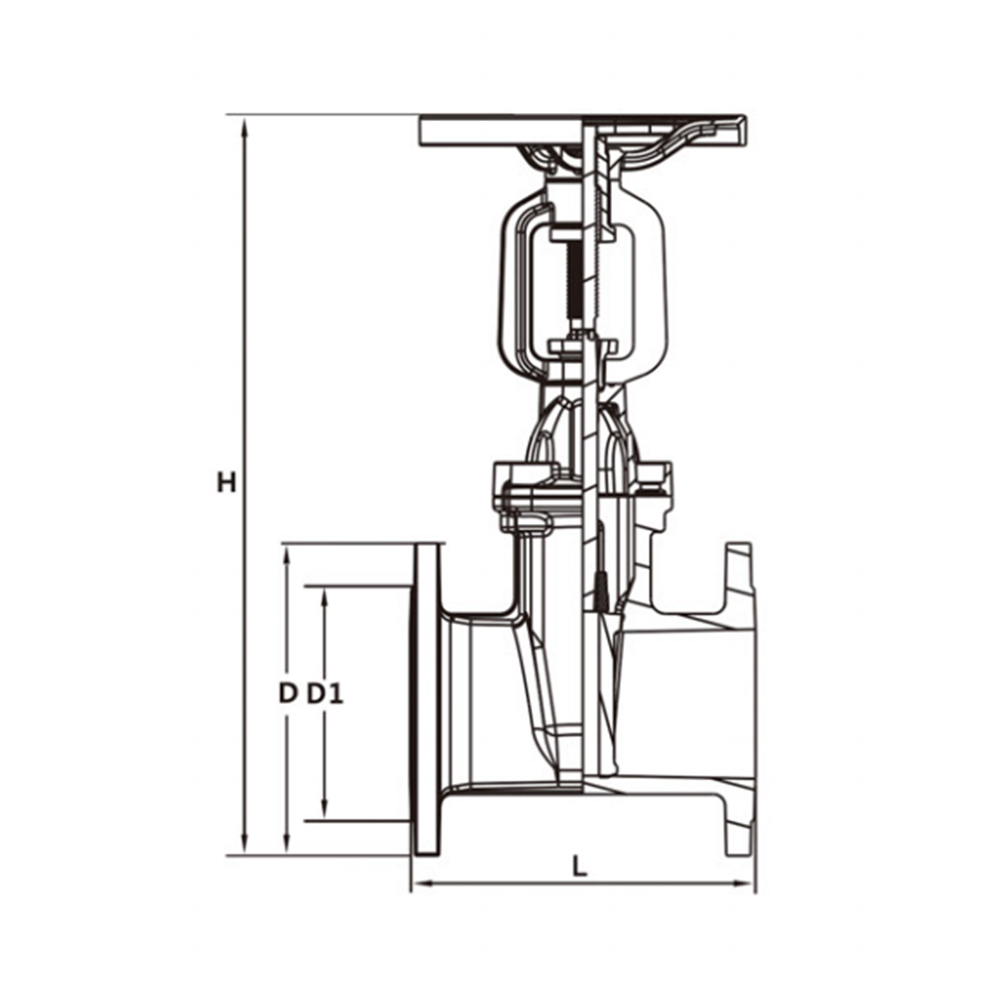

Morbi condimentum

Z41X-16Q DN 50 65 80 100 125 150 200 250 300 350
L 178 190 203 229 254 267 292 330 356 381
H 365 406 465 520 630 690 870 1050 1210 1300
D circulus exterior 165 185 200 220 250 285 340 405 460 520
n numero foraminibus 4 4 8 8 8 8 12 12 12 16
D1 Centre 125 145 160 180 210 240 295 355 410 470
Handwheel 180 215 285 330 380 465

DE Chanshui

Provectus Technologies pro efficientibus et certa operationibus

Changshui Technology Group Co, Ltd.is a valve integrating R&D, manufacturing, sales and service The manufacturer is currently one of the main suppliers of general-purpose valves in China. The main products are: gate valves, globe valves, butterfly valves, ball valves, check valves, regulating valves, pressure reducing valves, diaphragm valves, plug valves, plunger valves, drains Valves, hydraulic control valves, etc.

Qualitas producta ab utentibus in variis industriis laudata et observata sunt, et late in constructione, calefactione, aquarum copia, petroleum, chemica, electrica potestate et aliis industriis adhibita sunt! Propositum societatis conferre ad societatem cum productis summus qualitas. 'Propositum est satisfacere utentibus'. Qualitas nostra consilium est: "Meet utentium necessitates et exspectationes pro uber qualitate et exiliant Prima-classis qualitas administrationis gradus, prima classis producta faciens, officia primigenii ordinis" CSHUValve Industry habet Societas volens operari cum novis et veteribus amicis et collegis in societate, et utentes domi forisque manus iterum coniungere, et tabulatum, novam gloriam creare!
