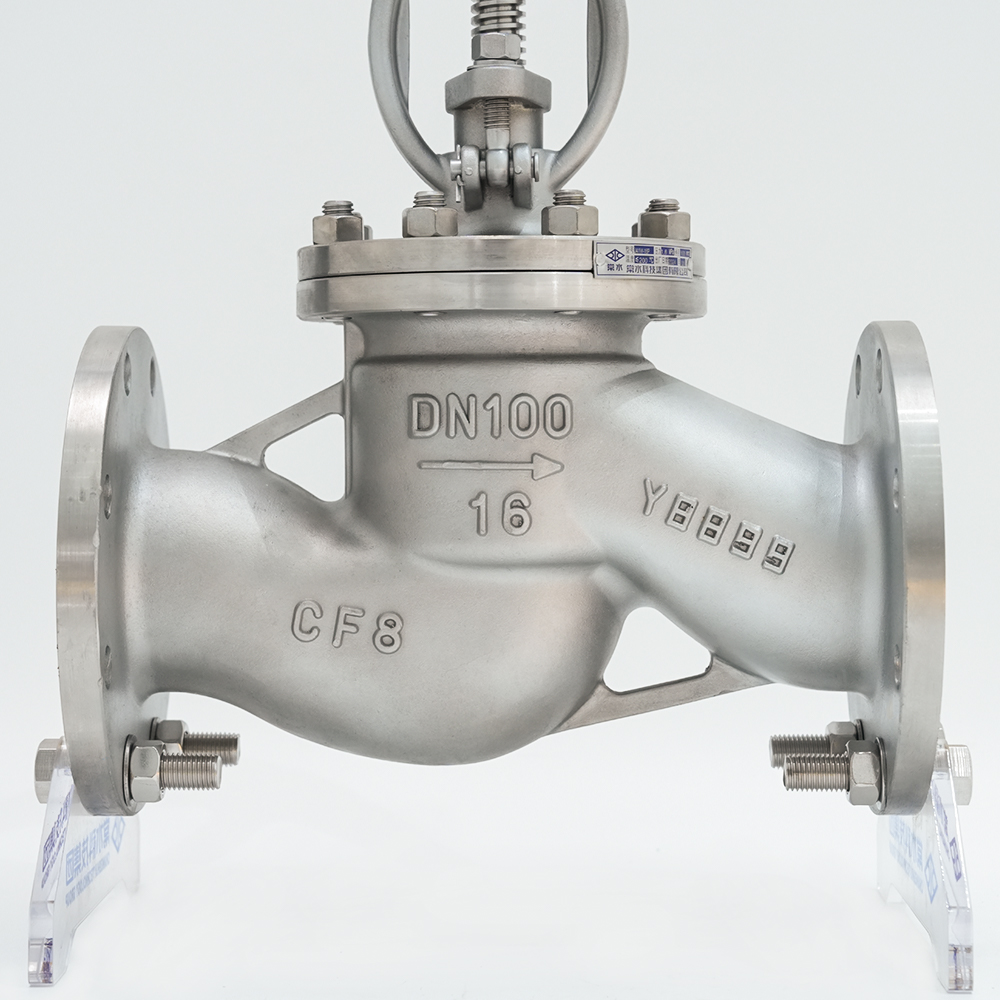

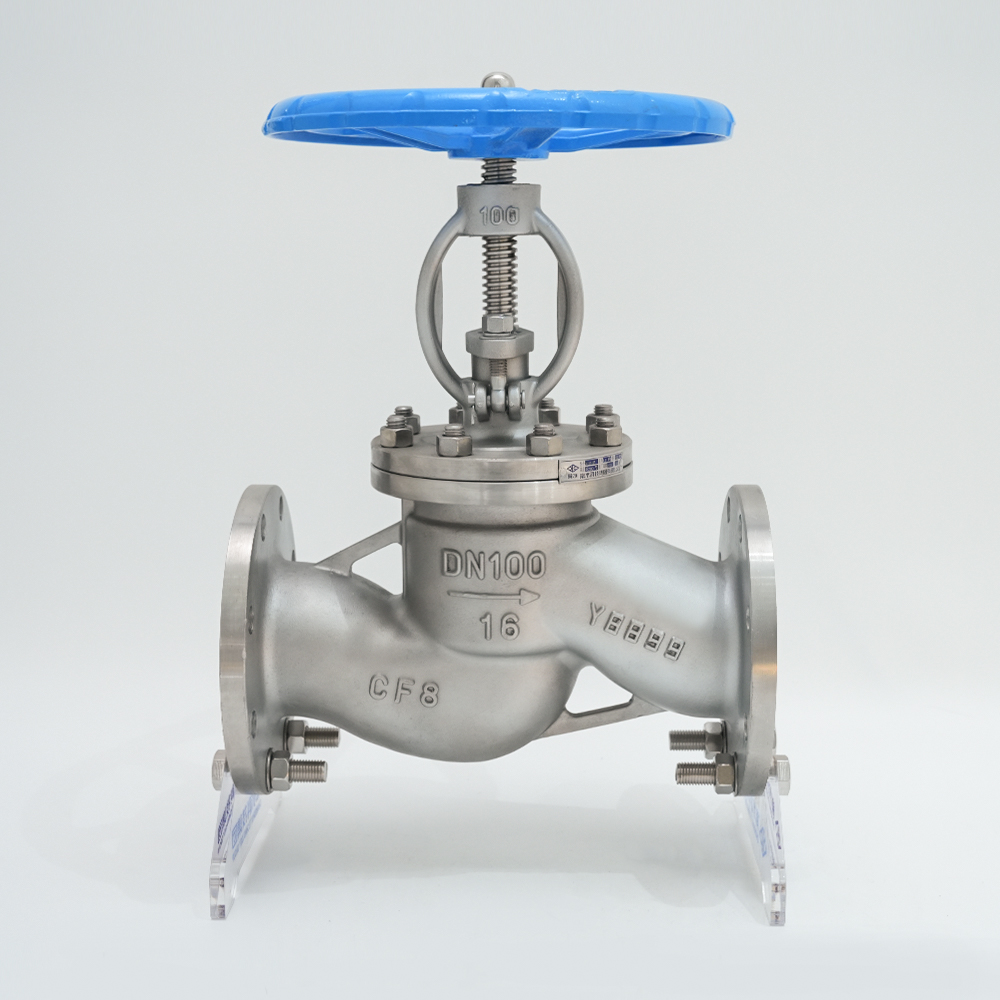

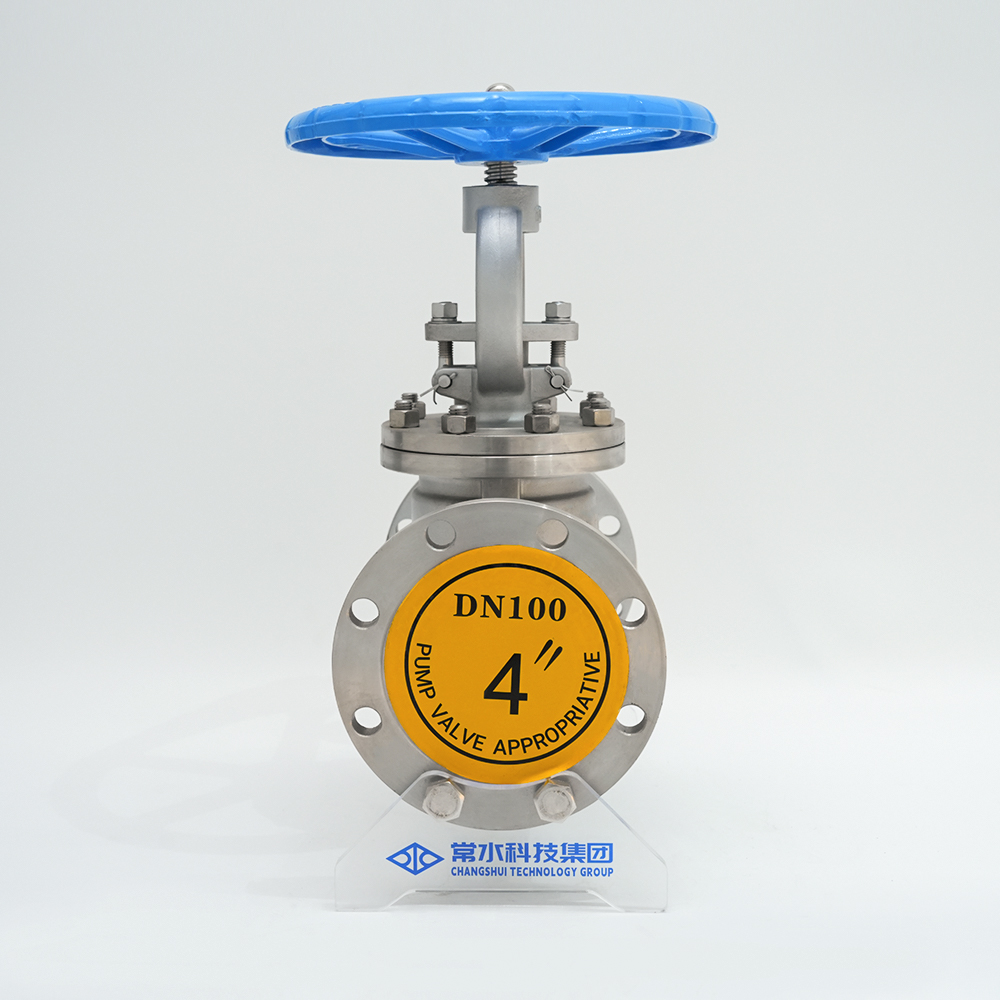

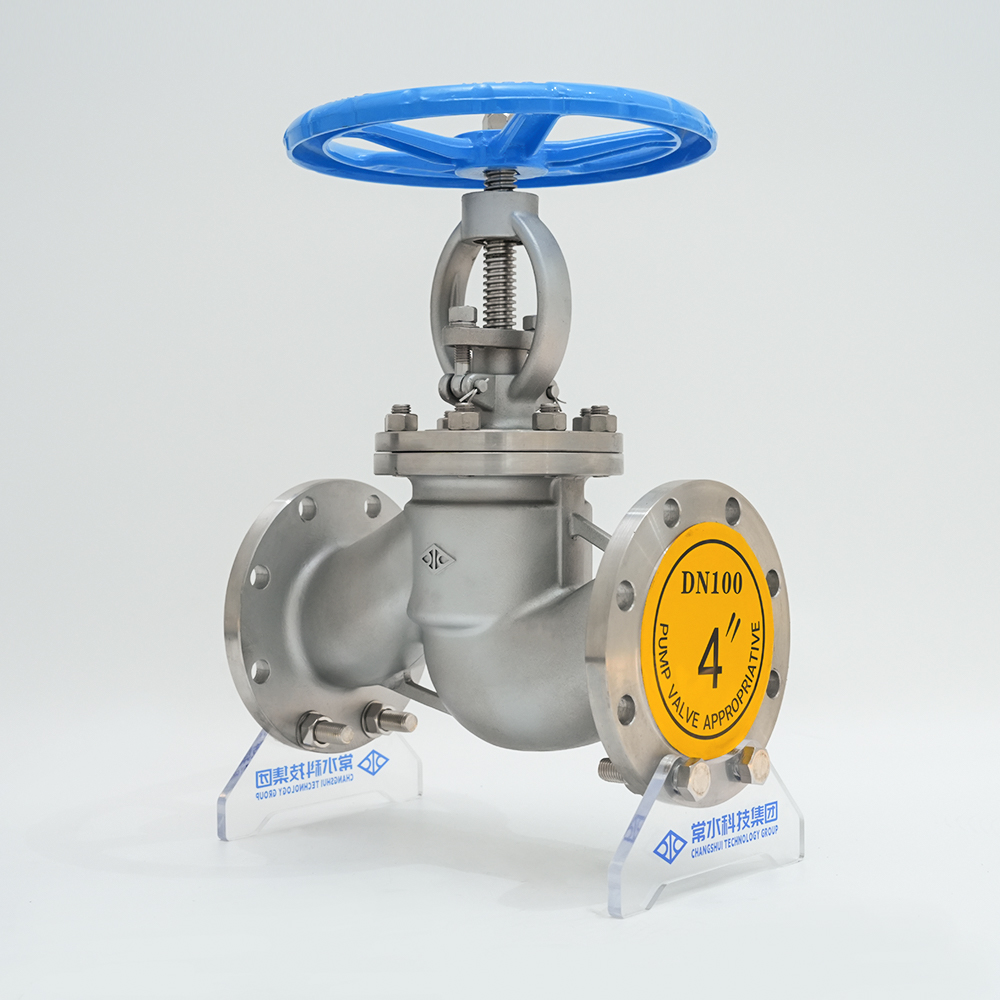

Stainless Steel Flange Stop Valve J41W-16P

Contactus us

Commoda structurae et proprietates

1. Productum designatum et fabricatum secundum vexillum nationale GB 12235, cum rationabili structura, certa signatione, effectu, et forma pulcherrima.
2. Valvae Flap, valvae sedes signantes superficiem ferrariam substructam alyam vel satellitem (elie) factum e cobalto substructio mixturae glutino, indumento repugnante, caliditas, corrosio, anti-abrasione perficiendi, longam vitam.
3. Caulis restinctus et nitrogenis curatio cum bono resistente corrosioni et vulneri resistentia.
4. Adhiberi potest cum variis vexillum organorum flangorum et flangorum superficiei signandi rationes ad varias projectiones necessarias et usorum requisita.
5. Corpus materialium varietas, sarcina, et gasket inniti possunt condicionibus actualibus laborantis vel usoris optionem rationabilem expostulat, et omnibus modis pressurae, caliditatis, et mediae condicionis applicari potest.
6. Obsignatum cochleae nexum obsignatum sedi tergori vel corporis confecti ex chalybe immaculato glutino, obsignatio et certa substitutio mittendi in non-cesso opportuno, et modo efficienti ratio operationis non afficit.

Signa et normae

Design and Manufacture	Structura Longitudo	Pressura temperatus rating	Connectens LABIUM	Test et inspicienda
GB 12235	GB 12221	GB 12224	JB/T 79/82~ 1994 GB 9113 HG 20592-20635	JB/T 9092-1999 GB 13927

Materia principalis components

Nomen	Materia
Corpus/Bonnet	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Cuneum	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Stem	F304	F304L	F316	F316L	2CR13	F304	F304	F304	F304
Caule Nucis	Aluminium Bronze
stipare	PTFE/flexibile graphite				Graphite
Gasket	PTFE / mat metallum wrap				Graphite
Gland	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Bolt					35CrMoA
Nut	Diver				45、35CrMoA
Handwheel	Diver Cast Steel

Praecipua externa et nexus dimensio

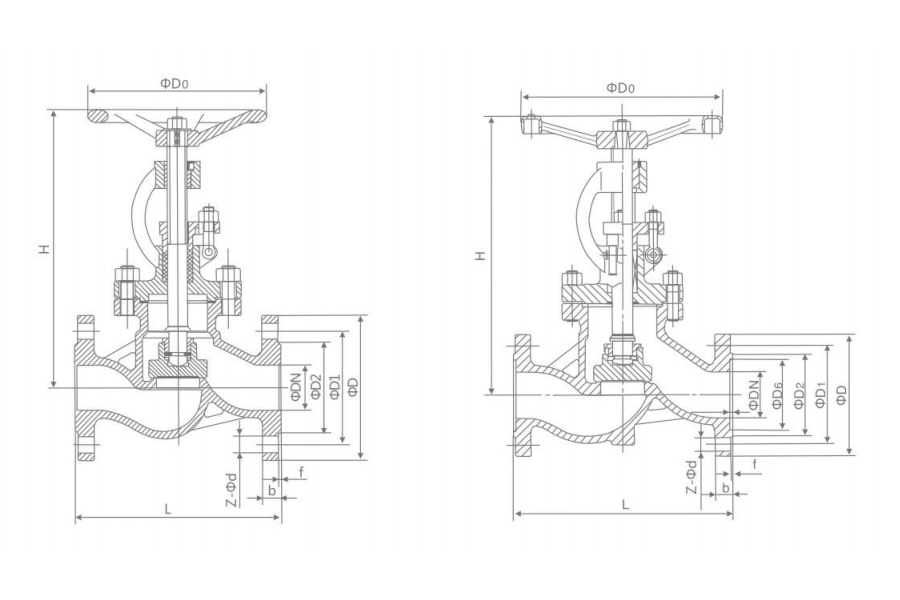

PN(MPa)	DN(mm)	Magnitudo (mm)										Electrica machinam exemplar	Murus crassitudo
PN(MPa)	DN(mm)	L	D	D1	D2	D6	b-f*	f2	Z-Φd	H	D0	Electrica machinam exemplar	Murus crassitudo
1.6	10	130	90	60	40		16-2		4-φ14	198	120		6.4
	15	130	95	65	45		16-2		4-φ14	218	120		6.4
	20	150	105	75	55		18-2		4-φ14	230	140		6.4
	25	160	115	85	65		18-2		4-φ14	240	160		6.4
	32	180	140	100	78		18-2		4-φ18	250	180		6.4
	40	200	150	110	85		18-3		4-φ18	262	200		6.4
	50	230	165	125	100		18-3		4-φ18	280	240	DZW10A	7.9
	65	290	185	145	120		18-3		8-φ18	327	280	DZW10A	11
	80	310	200	160	135		20-3		8-φ18	355	280	DZW10A	11.5
	100	350	220	180	155		20-3		8-φ18	415	320	DZW15A	12.5
	125	400	250	210	185		2222-3		8-φ18	460	360	DZW20A	13
	150	480	285	240	210		2222-3		8-φ22	510	400	DZW30A	13.5
	200	600	340	295	265		24-3		12-φ22	588	400	DZW45A	15
	250	650	405	355	320		26-3		12-φ26	725	450	DZW60A	16
	300	750	460	410	375		28-4		12-φ26	925	500	DZW90	18
	350	850	520	470	435		30-4		16-φ26	1030	600	DZW120	19
	400	950	580	525	485		32-4		16-φ30	1170	700	DZW180	21
	450	1050	640	585	545		40-4		20-φ30	1220	800	DZW180	21.5
	500	1150	715	650	608		44-4		20-φ33	1410	900	DZW250	22
	600	1350	840	770	718		54-5		20-φ36	1610	1000	DZW350	25
